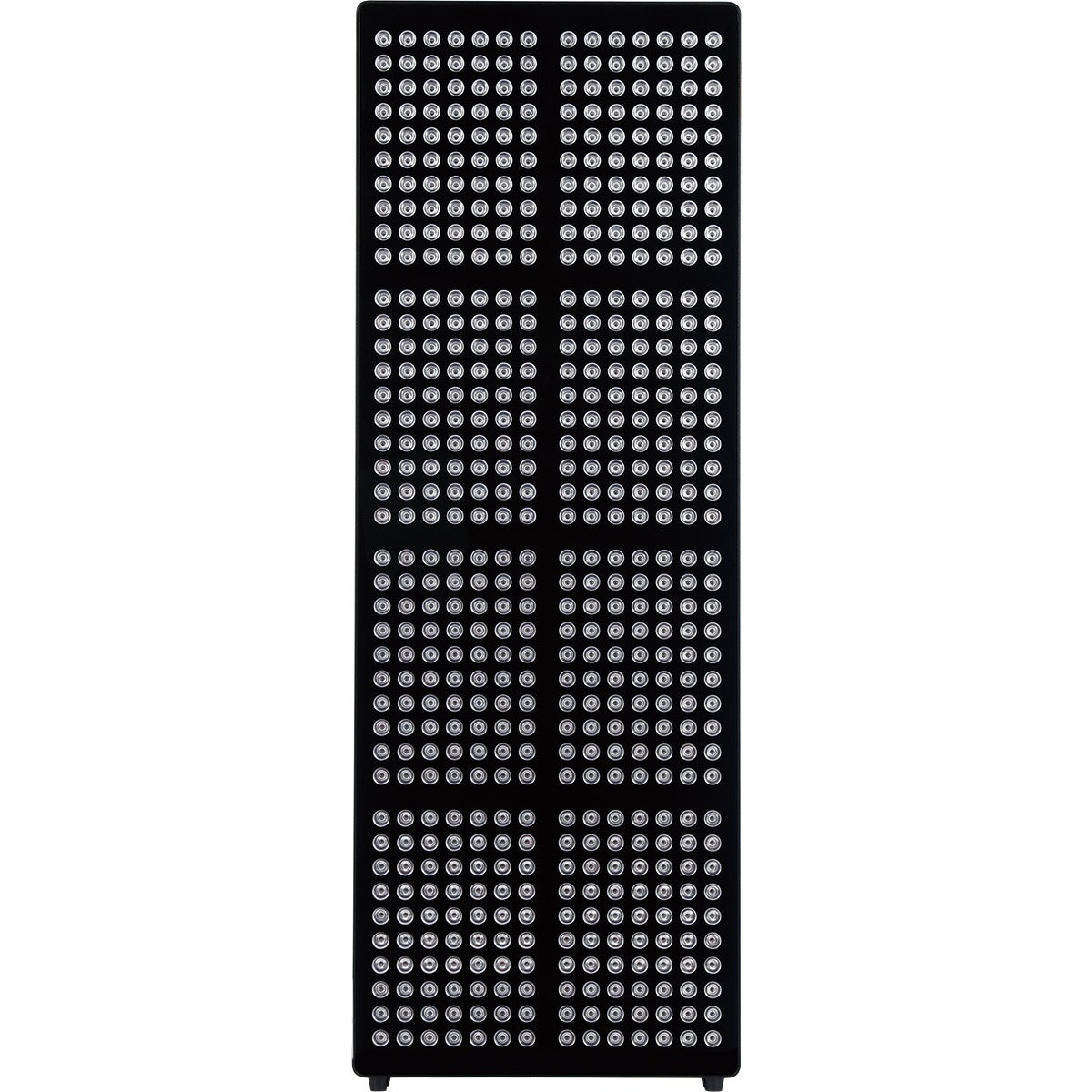

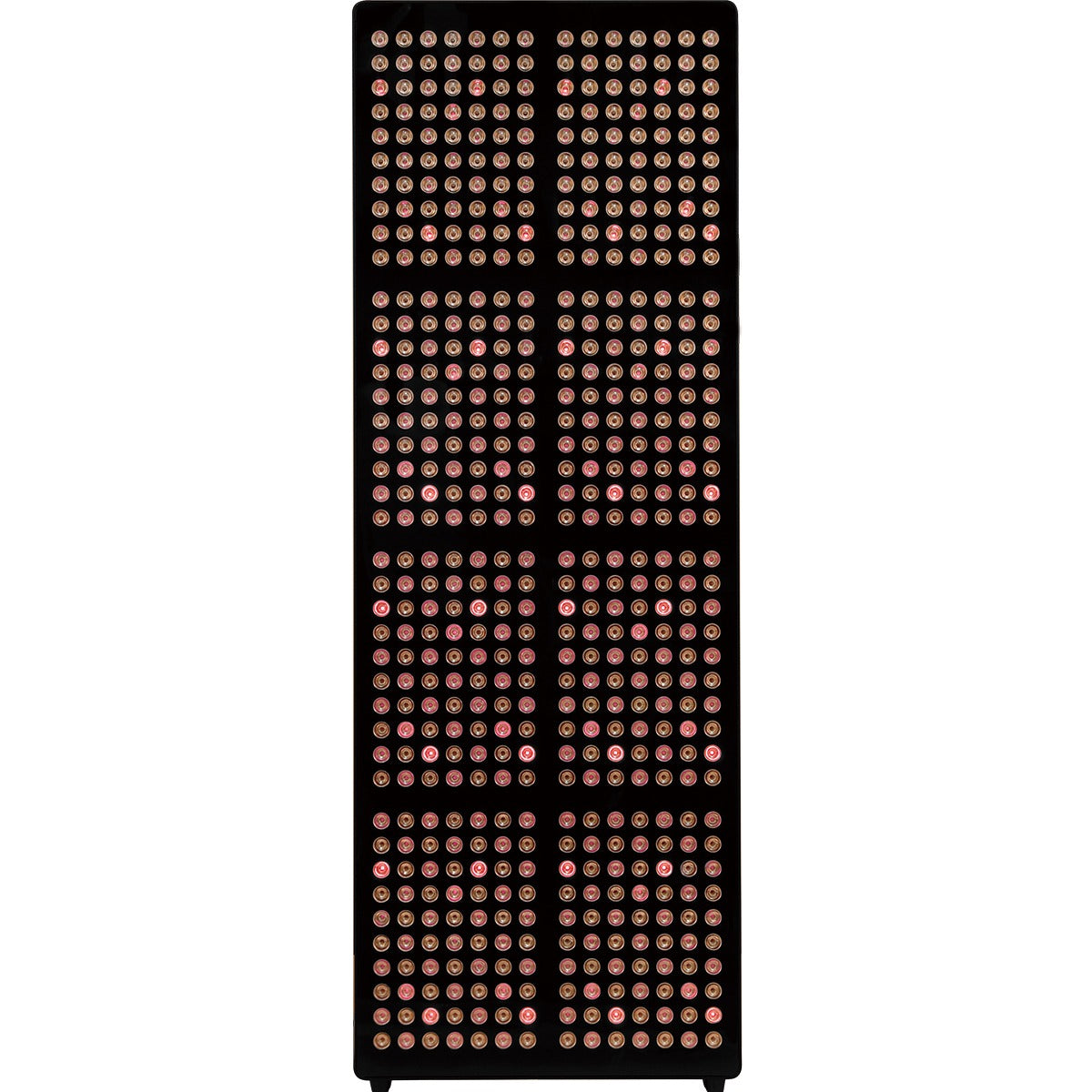

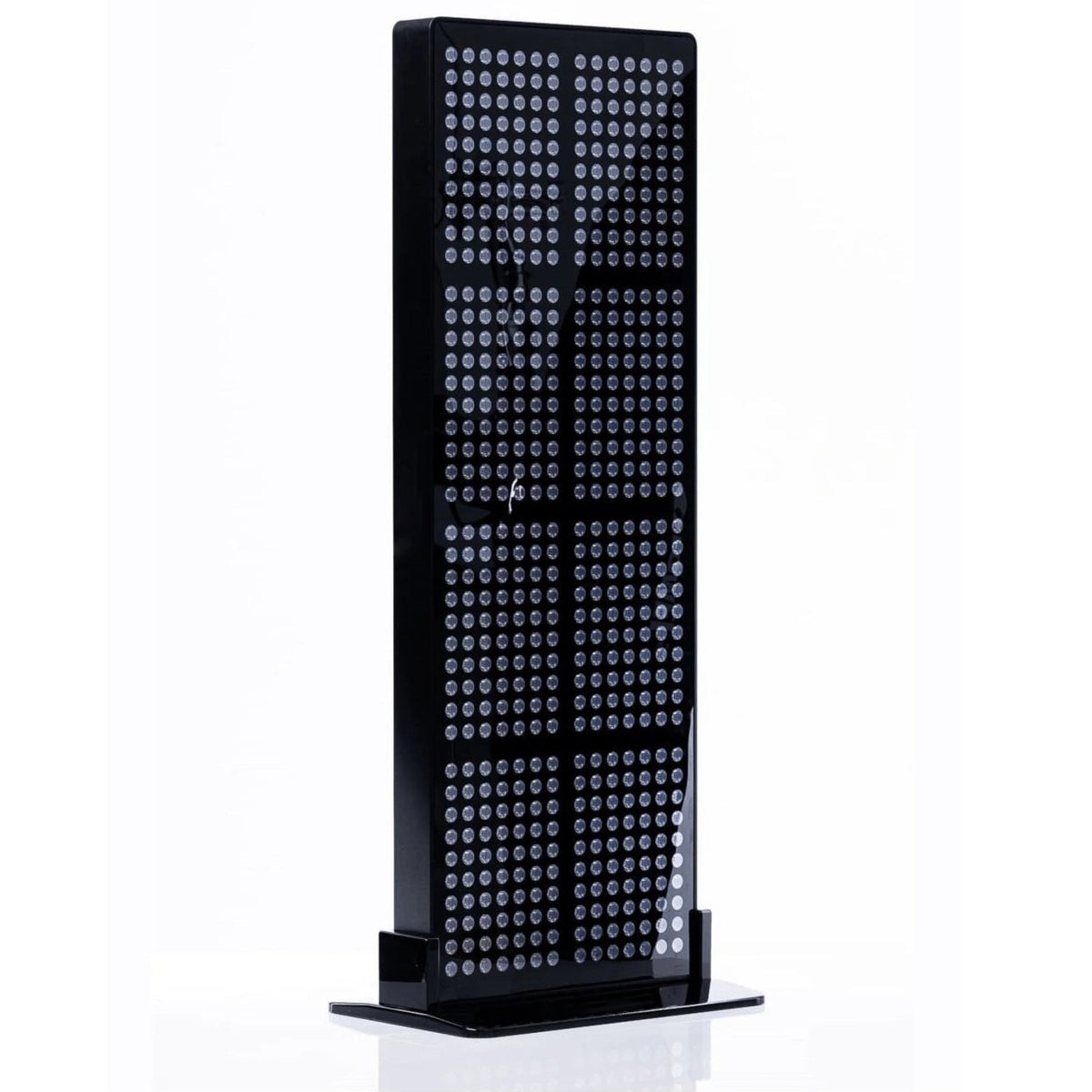

Full Body Red Light Therapy RH2400 Full Body Red Light Panel

Experience broad-area red and near-infrared light coverage with the RH2400 Full Body Red Light Panel. Designed for home wellness spaces, fitness environments, spas, and professional settings, this high-capacity panel combines 560 LEDs with independent Red and Near-Infrared (NIR) controls for flexible light output.

The RH2400 features a durable aluminum alloy frame, protective acrylic front panel, patented heat dissipation system, flicker-free operation, and modular internal construction. With selectable 5-waveband or 7-waveband configurations, adjustable intensity, timer, and pulse settings, it provides a versatile setup for full-body light sessions and larger-area applications.



🛠️ Product Overview

• Large full-body red and near-infrared light panel
• 560 premium LED chips
• Available in 5-waveband or 7-waveband configurations
• Independent Red and Near-Infrared (NIR) controls
• 2800W rated power with 728W power consumption
• 30° lens beam angle for broad light coverage
• Flicker-free operation
• Durable aluminum alloy frame

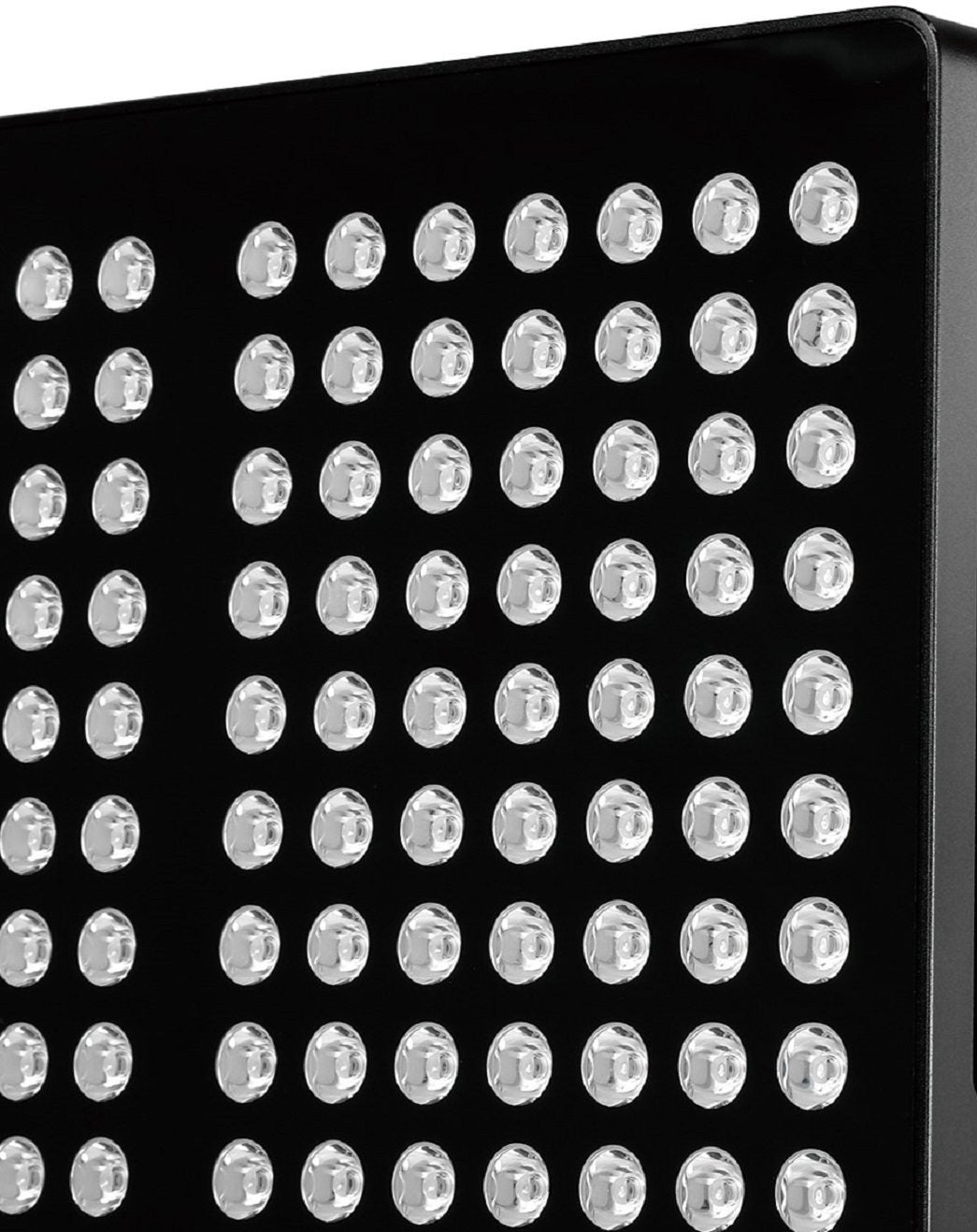

• Protective acrylic front panel
• Patented heat dissipation system
• Modular internal construction for easier maintenance
• Touch key controls with optional Intelligent HD color touchscreen
• Wireless synchronization for multiple compatible panels



🔴 Flexible Light Settings

The RH2400 allows independent adjustment of Red and Near-Infrared light output. Users can customize the session with selectable timer, dimming, and pulse settings to suit different wellness and light-use preferences.



💡 LED Waveband Options

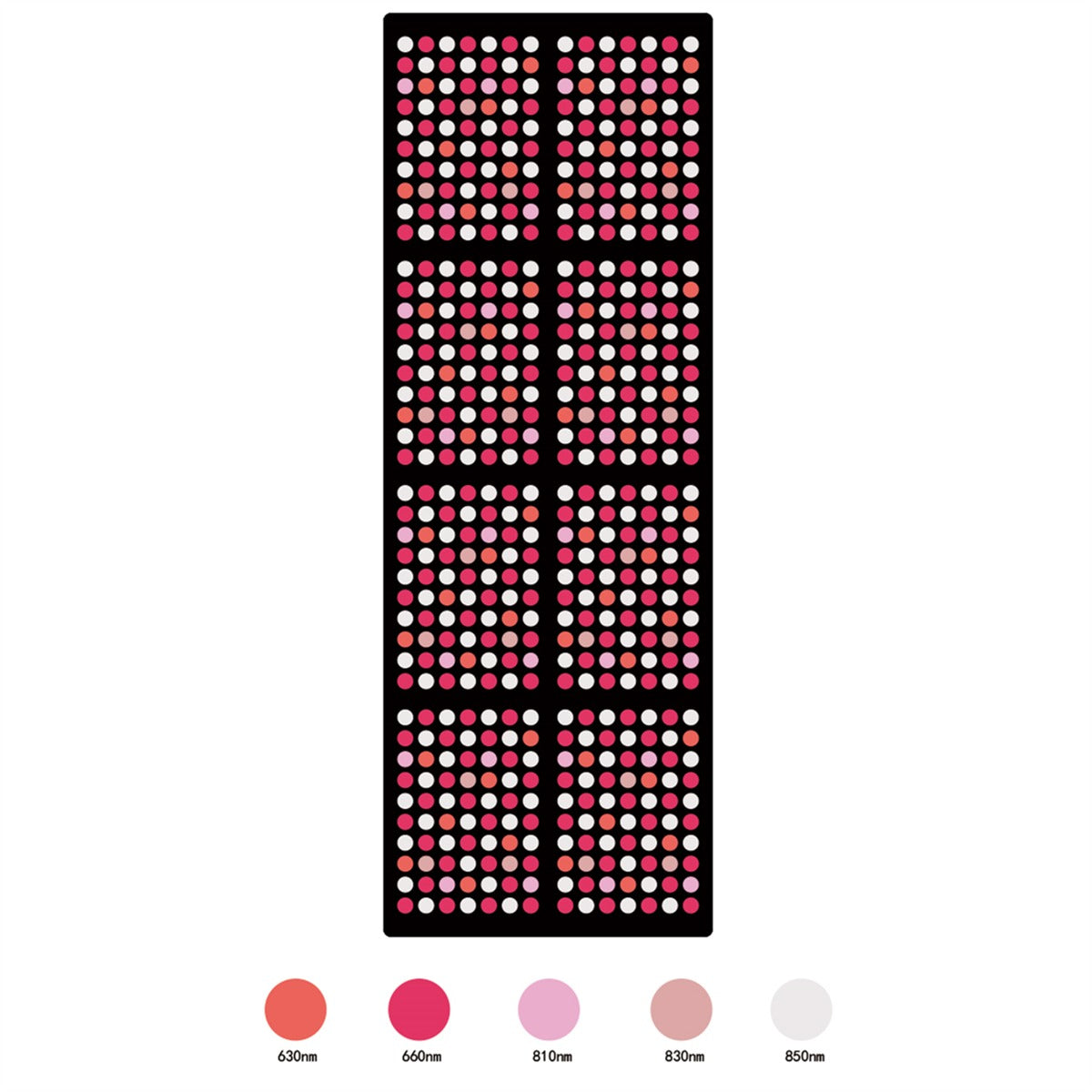

5-Waveband Configuration: 630nm, 660nm, 810nm, 830nm, and 850nm.

• 630nm × 56 LEDs
• 660nm × 224 LEDs
• 810nm × 32 LEDs
• 830nm × 24 LEDs
• 850nm × 224 LEDs

7-Waveband Configuration: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, and 940nm.

• 480nm × 16 LEDs
• 630nm × 56 LEDs
• 660nm × 208 LEDs
• 810nm × 32 LEDs
• 830nm × 24 LEDs
• 850nm × 200 LEDs
• 940nm × 24 LEDs



⚙️ Adjustable Controls

• Timer: 5, 10, 15, 20, 25, or 30 minutes, with adjustable 0–30 minute operation
• Dimmer: 20%, 40%, 60%, 80%, 100%, or adjustable 0–100%
• Pulse Mode: 10, 40, 73, 146, 293, or 587 Hz, with adjustable 0–10,000 Hz operation
• Red/NIR Control: Independent adjustment
• Control Options: Touch key controls or optional Intelligent HD color touchscreen
• Multi-Panel Control: Wireless synchronization with compatible panels



🏠 Designed for Broad Coverage

The RH2400's large 45.6-inch panel provides extensive light coverage in a single unit. Its format is suited to dedicated wellness rooms, home fitness areas, spas, recovery spaces, and professional environments where broad-area illumination is desired.

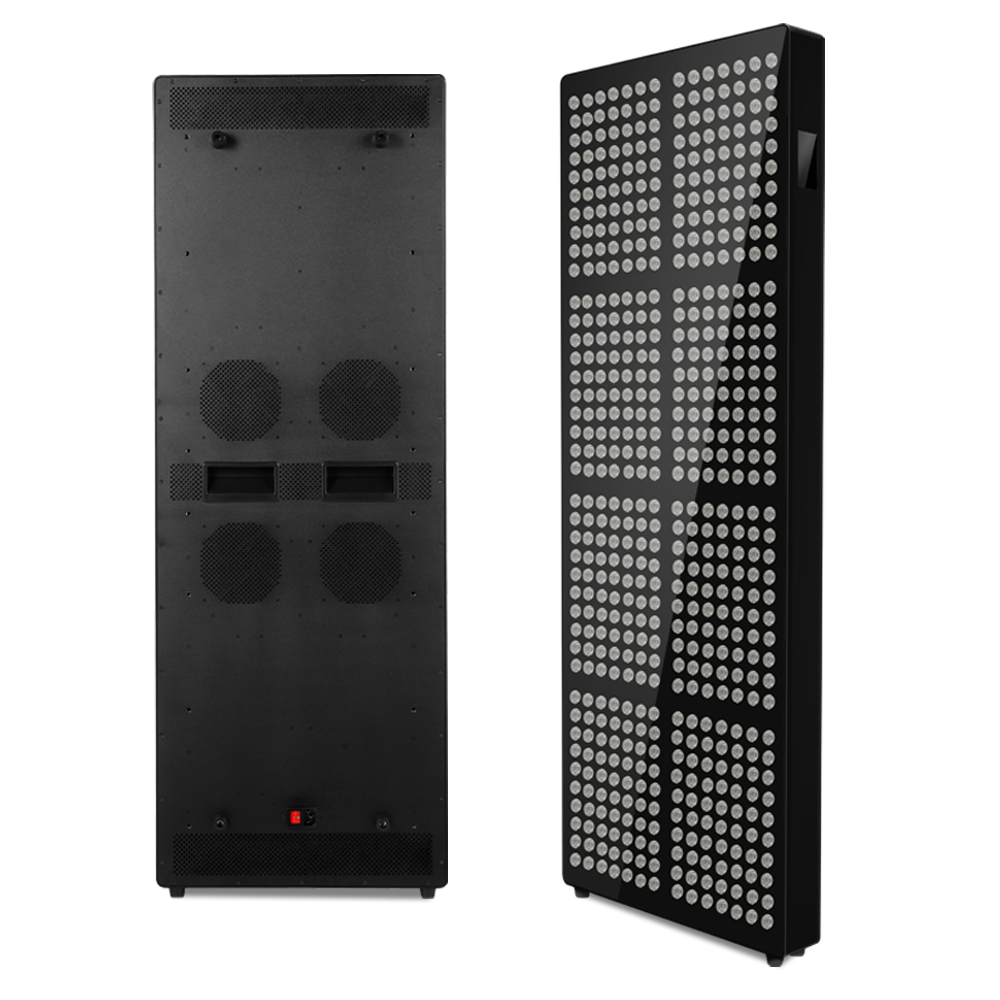

🔧 Durable Construction

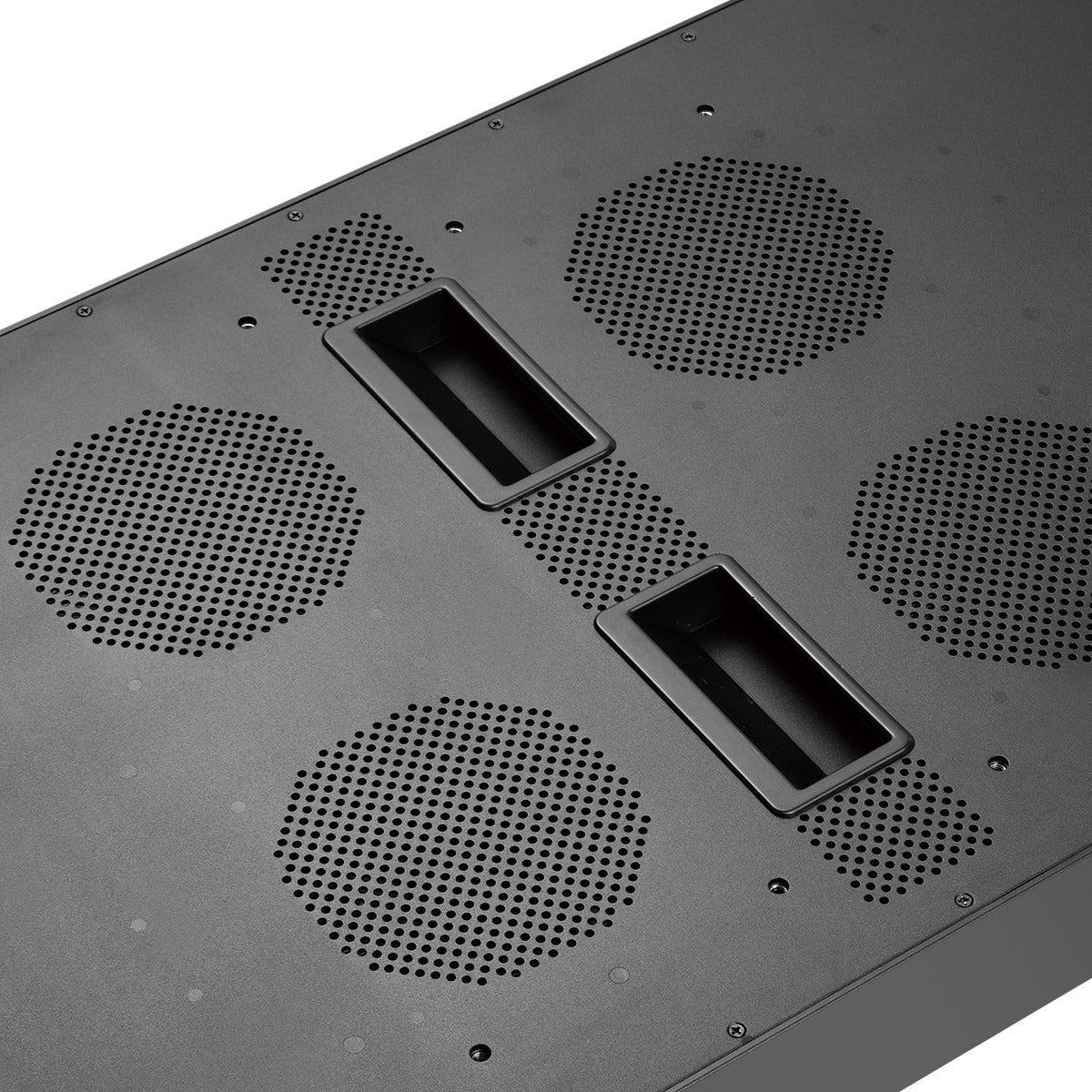

A heavy-duty aluminum alloy frame provides a sturdy structure while the integrated heat dissipation system is designed to manage operating temperatures. The acrylic front panel helps protect the LED array from dust, scratches, and everyday wear, while the modular internal design supports easier servicing.



📊 Technical Specifications

Specification	Details
Model	RH2400
Frame Material	Aluminum Alloy
Rated Power	2800W
Power Consumption	728W
Input Voltage	100–240 VAC, 50/60 Hz
LED Quantity	560 LEDs
Waveband Options	5-Waveband or 7-Waveband
Lens Beam Angle	30°
Irradiance @ 6"	152 mW/cm²
Irradiance @ 12"	131 mW/cm²
Irradiance @ 18"	117 mW/cm²
Irradiance @ 24"	101 mW/cm²
EMF @ 3"	0 μT
Operation	Flicker-Free
LED Lifespan	Up to 100,000 hours
Dimensions	1159 × 415 × 71 mm (45.6 × 16.3 × 2.79 in)
Weight	18.5 kg (40.8 lb)
Warranty	3-Year Limited Warranty

📦 What's Included

• RH2400 Red Light Panel
• Integrated control system
• User documentation



🎯 Ideal For

• Home wellness rooms
• Home fitness spaces
• Fitness centers
• Spas and wellness facilities
• Recovery spaces
• Professional wellness environments
• Large-area red and near-infrared light applications



The Serene Lifestyle Co RH2400 combines high LED output, extensive panel coverage, flexible wavelength configurations, and independent Red/NIR controls in a professional-format light panel. Its 560-LED array, adjustable controls, durable aluminum construction, and optional touchscreen make it suitable for users looking for a configurable full-body red and near-infrared light system.

With a 2800W rated power specification, 728W power consumption, 30° beam angle, flicker-free operation, and an expected LED lifespan of up to 100,000 hours, the RH2400 is built for repeated use in dedicated wellness and professional environments.



Warranty: 3-Year Limited Warranty
Shipping: Calculated at checkout
